Slitter Rewinder

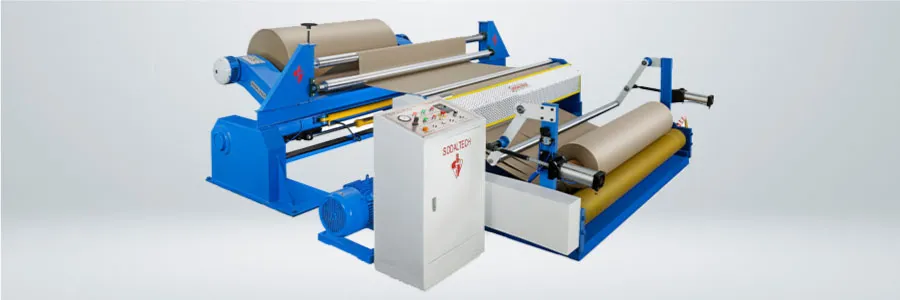

Heavy Duty Slitter Rewinder Machine ETS 2000 Model
Salient Features
- Maximum parent reel width (approx) : 2000mm
- Parent reel outer diameter (approx) : 1300mm
- Slit reel outer diameter (maximum) approx : 1300mm
- Minimum slitting width : 75mm
- Maximum cutting stations : 27 Nos
- Output Speed (approx) : 100 metres per minute depending on the quality of the raw material, size etc
- Parent Paper Reel Loading : Automatic
- Parent Paper Reel Clamping : Automatic
- Unloading of slit reel : Automatic
- Maximum weight of the parent reel (approx) 800 Kgs
- GSM Range : 100 GSM to 600 GSM
- Paper Core Size : 3” Both Unwind and Rewind station
- Total Power (approx) : 13 KW
- Air Supply requirement : 6 Bar (100 lpm)
- Trim waste removal system
- Shaftless paper reel clamping
- Numerical braking system for tension control
